Pump working station
[Back to Previous Page]

   Details

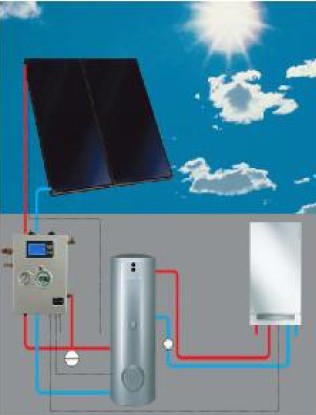

 It used for Split pressure active solar water heater system

Main technical data:

1. Dimension: 385¡Á220¡Á135mm
2. Input voltage: 200V¡«240V AC or 100V¡«120V AC
3. Power: ¡Ü3W
4. Accuracy of temperature measuring: ¡À1¡æ
5. Range of temperature measuring: PT1000 : 0¡«199¡æ NTC10K: 0¡«99¡æ
6. Input signals:
      1 x PT1000 sensor temperature probe ¡Ü500¡æ, silicon cable ¡Ü280¡æ;
      3 x NTC10K sensor temperature probe¡Ü135¡æ, PVC cable ¡Ü105¡æ
7. Output signals:
     1 x Auxiliary heating output (Max. load current: 12A)
     2 x Relay output (Max. load current: 1.5A)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa
10. WILO pump model: RS15/6
11. Screw coupling: 1/2¨•
12. Pipeline Material: Brass
13. Secondary display screen (For selection)
14. Range of environment temperature: -10¡«50¡æ
15. Water protection grade: IP40

Main functions:

1. Time display
2. Temperature difference circulation
3. Tank overheating protection
4. Emergent stop of system overheating
5. Frost protection of pipeline and collector
6. Three periods of time adjustable on pipeline circulation
7. Three periods of time adjustable on auxiliary heating
8. Holiday function
9. Three speed levels on circulation pump
10. Display flow rate
11. Display system pressure
>
