Model

ST-2.0BC

ST-2.0BT

Dimensions(W*L*H) (mm)

2000*1060*80

2000*1060*80

Cross area / Absorber area(m²)

2 / 1.8

2 / 1.8

Conversion factor (%)

77.3

78.1

Loss coefficient a1 (w/m²K)

3.9

3.55

Fluid content (L)

2.22

2.22

Maximum operating pressure (MPA)

1

1

Temperature of operation (℃)

(-)35~150

(-)35~150

Weight empty (KG)

33

33

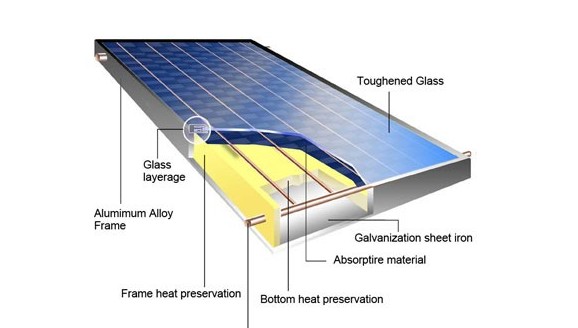

Core

Aluminum and copper pipe, ultrasonic welding

Coating

black chrome

Blue titanium

Absorptance

≧95%±2%

Emittance

≤9%±2%

Absorber material & thickness

Aluminum , 0.3mm

Header pipe material ,dim.& Qty.

Copper T2 ,Φ22*0.7 *1060 mm, 2pcs

Riser pipe material ,dim.& Qty.

Copper T2 , Φ8*0.5 mm , 8pcs

Material & thickness of glass

low iron  tempered glass:3.2mm

Dimension of glass sheet (mm)

1985×985

Transmittance of glass

87%~91%

material & thickness of the frame

Aluminum, 1.2mm

Color of the frame

Black or white

Material/thickness of insulation

Glass wool / high dense polyurethane foam/35mm

Max working Pressure

1MPA

Material & thickness of the back sheet

Zincification plate:0.35mm

Cover sealing material

Metal/ EPDM + metal

Packing

Neutral carton

Packing dimension(2 pieces in 1 carton)

2020*1100*180mm

Loading in 20’GP/40’GP/40’HQ (pcs)

145/306/346
