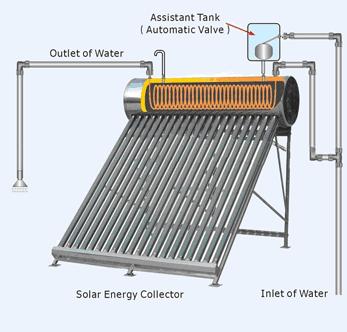

This type solar water heater provides main pressure pre-heating via a high efficiency copper coil heat exchangerwith the solar collector tank.
Rater than using the water in the tank directly, as the non-pressure does.

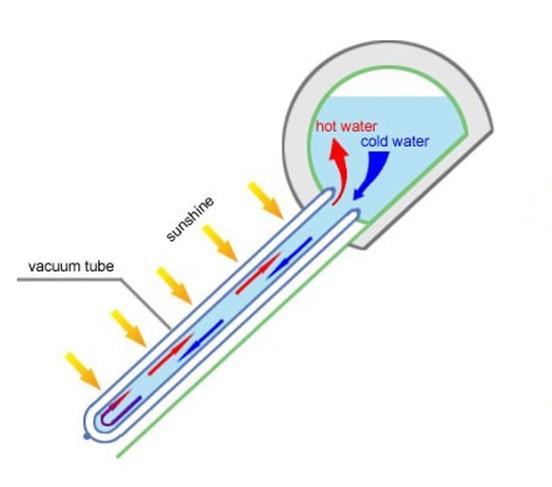

When water flows through the coil it absorb heat from the water inside the solar tank. The solar tank therefore is a thermal store and amount of
Water you can draw isn¡¯t restricted to size of tank.
There is no water entering such kind of collector so that it can avoid corrosion and rust. Pre-heating solar water heater can be connected directly with pressure water pipeline.
So it can be used as high pressure system.
Feature:
1) Exterior tank withstainless steel/galvanized steel
2) Interior tank with food grade stainless steel SUS304-2B
3) Frame with stainless steel/galvanized steel
4) Copper coil can bear pressure 0.6MPA
5) With 55mm Germany polyurethane foam insulation
6) Borosilicate 3.3 twins-glass vacuum tube
7) Optional fittings: assistant refilling tank ,controller, electrical heater etc.
