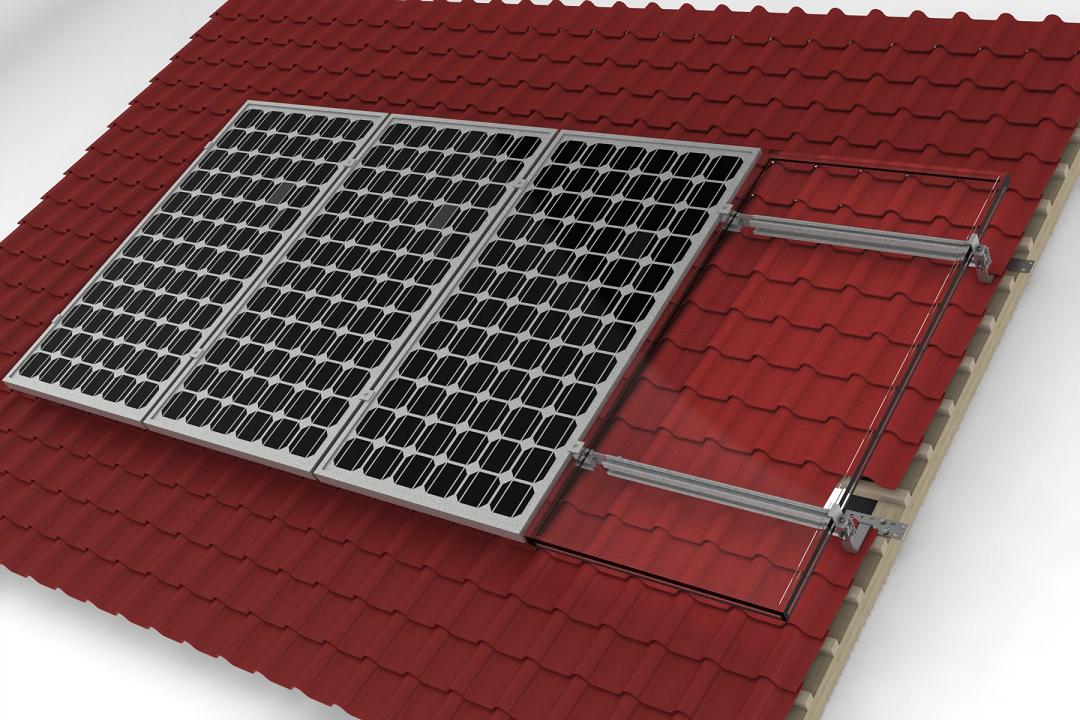

Suntimes  Pitched Roof Racking System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module to flush with the pitched roof. The special extruded aluminum rail, the tilt-in module, the clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical data:

• Install site：Pitched Roof-Tile
• Tilt Angle：Flushed with the roof（10~60 deg）
• Building Height：20m
• Max Wind Speed：<60m/s
• Snow Load：<1.4KN/m2
• Standard：AS/NZS 1170 and BV certified/ISO9000
• Material：High Class Aluminum alloy Al6005-T5& Stainless steel 304
• Color:  Natural or Customized
• Anticorrosive:  Anodized aluminum & stainless steel
• Warranty：10 years warranty and twenty years service life

Your benefits:

• Combinable with all Suntimes  system components
• Easy to set up
• Inexpensive
• Build from cheap standard rails
• Significant time-saving installation
• Only 4 components (low stock)
